368 Anti-Bugular Video Doorphone System

The features as below :
This is an intelligent video doorphone system.
Max. system capacity: 90 cameras for outdoor station, 4,000 tenants, anti-burglar, alarm & video intercom 3 in 1 system.
Variety modern design provides residents safe and comfortable home life. 368 Multi-Function Video Doorphone System offers residents a wide range of authentication options.

Wire Connection :
1. 4 signal wires + 1 video cable(5C2V-128 net braids)
2. Video Monitor needs extra power supply. Audio handset no need extra power supply.







Functions:
1. No matter single entrance community or multi-entrance community always be available.
2. Video doorphone system can connect to the emergency power supply equipment of community building or UPS, the video doorphone system still can be operated normally even in emergency status.
3. Tenant no. range : from 1-digit to 8-digit is available.
4. All tenant no. are inputted in 368VSB(Video/Signal Booster), to change the tenant no. is very easy, no need to tenant’s place or return factory. Just do it in 368VSB.
5. Each tenant can connect 4 video monitors or 4 audio handsets. Door bell is an optional item and also available in the whole system.
6. Join to anti-burglar/ alarm system in control center, you can get all tenants’s status through control center.

7
. Provide different kinds of ringing tones for identifying different purposes.

PS. If your project needs the function of "broadcasting" or "tenant to tenant talking", please contact us, we will inform you how to do “wire connection” and order extra optional items to reach your request.

368C7 Stainless Steel Digital Camera
368C8 Stainless Steel Digital Camera with card reader

SUS304
Stainless Steel

Working Voltage: DC15V independent power
Consumption Current: Stand-by 50mA, Working 400mA
CCD: Color 1/3” Board camera
Resolution: Color 510(H)x492(V)
Signal noise rate: more than 48db
Picture Pixels: 270,000 Pixels
Illumination: 4 white LEDs in color system
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single way R-T, Double way transmitting wire
Control: RS485, Double way transmitting wire
Installation way: Flush mounting type
Material: Stainless Steel front panel and base and
Stainless Steel Back light Keypad

Dimensions: (H)300mm/(W)100mm/(D)75mm
Flush mounting part is 65mm, the thickness after installation is 10mm
W
eights: 1.5 kgs
Measurement: 0.2 cuft
Flush mounting type only
Flush Pre-box: Material-Zinc Plate: (H)275mm/(W)90mm/(D)50mm



SUS316
Stainless Steel

Working Voltage: DC15V independent power
Consumption Current: Stand-by 100mA, Working 500mA
CCD: Color 1/3” Board camera
Resolution: Color 510(H)x492(V)
Signal noise rate: more than 48db
Picture Pixels: 270,000 Pixels
Illumination: 4 white LEDs in color system
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single way R-T, Double way transmitting wires. Control: RS485, Double way transmitting wire
Installation way: Flush mounting type
Material: Stainless Steel front panel and Stainless Steel Back light Keypad
Dimensions: (L)300mm/(W)200mm/(H)75mm
Flush part 65mm, the thickness after installation is 10mm
Weights: 2.9 kgs
Measurement: 0.3 cuft
Flush mounting type only
Flush Pre-box: material-zinc plate (L)275mm/(W)182mm/(H)50mm

with Inductive Card Reader
Editing by remote control system
Memorize 2,500 pcs
Inductive Cards (EM or Mifare Card)
368C11 ABS Video Door Bell / 368CAL Aluminum Video Door Bell
855C9 CCD Push Button Camera with Card Reader

Working Voltage: DC15V
Consumption Current: Standby-50mA, Working-300mA
Camera: Color 1/3” CCD Board camera
Dpi : Color 510(H)x492(V)
Signal noise rate: more than 48db
Picture Pixels: 270,000 Pixels
illumination: 0.1lux at 4 white leds in color system
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single way R-T, dual-way transmitting wires
Installation way: Surface & Flush mounting type
Material: Aluminum / ABS
Dimensions:
368CAL: (L)200mm/(W)120mm/(H)55mm
368C11: (L)128mm/(W84mm/(H)34mm
Weights: 0.4 kg / 0.3kg
Measurement: 0.2cuft / 0.1cuft
368CAL
with/without Inductive Card Reader
Editing by Mother Card
Memorize 2,500 pcs
Inductive Cards (EM or Mifare Reader)
Could be used by 0.18/0.76cm EM or Mifare card

(New Release)

12 ~ 24 Residents are Available
Power In: DC15V independent power
Consumption Current: Stand-by 100mA, Working 250mA
CCD: Color 1/3” Board camera
Resolution: Color 510(H)x492(V)
Signal noise rate: more than 48db

Picture Pixels: 270,000 Pixels
Illumination: 4 white LEDs in color system
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single way R-T, Double way transmitting wires.

Control: RS485, Double way transmitting wire
Flush mounting type only
Dimensions: 300x200x75mm
Measurement: 0.3 cubic ft
Weight: 2.9 kgs
Stainless steel Panel

with/without Inductive Card Reader
Editing by remote control system
Memorize 2,500 pcs
Inductive Cards (EM or Mifare Card)
Could be used by 0.18/0.76cm EM Card or Mifare card

368C5 10 Buttons Digital Camera
368K2 20-button Keypad For 368C5
1 ~ 10 Residents are Available
Working Voltage: DC15V independent power
Consumption Current: Stand-by 100mA, Working 500mA
CCD: Color 1/3” Board camera
Resolution: Color 510(H)x492(V)
Signal noise rate: more than 48db
Picture Pixels: 270,000 Pixels
Illumination: 4 white leds in color system
Communicating Interface: Picture 75 ohm 1.0 Vpp;Intercom single way R-T, dual way transmitting wires.
Installation way: Wall mounting type or Flush mounting type
Material: Aluminum
Dimensions: (L)323mm/(W)120mm/(H)55mm
Flush part 45mm, the thickness after installation is 10mm
Weights: 0.6 kg
Measurement: 0.13'
Dimensions of flush pre-box: material-zinc plate
Flush pre-box: (L)290mm/(W)100mm/(H)55mm
Surface pre-box: (L)323mm/(W)120mm/(H)55mm
Double size (with 368K2) Flush pre-box (L)323mm/(W)270mm/(H)45mm
Double size (with 368K2) Surface pre-box: (L)323mm/270mm/(H)55mm

For 1 to 20 Residents are Available
Working Voltage: From 368C5
Installation way: Wall mounting type or Flush
mounting type
Material: Aluminum
Dimensions: (L)323mm/(W)120mm/(H)55mm
Flush part 45mm, the thickness after installation is 10mm
Weights: 0.4 kg
Measurement: 0.13'
Dimensions of flush pre-box: material-zinc plate
Flush pre-box: (L)290mm/(W)100mm/(H)55mm
Surface pre-box: (L)323mm/(W)120mm/(H)55mm
Double size (with 368C5) flush pre-box: (L)323mm/(W)270mm/(H)45mm
Double size (with 368C5) surface pre-box: (L)323mm/270mm/(H)45mm


S368MmR 8" Touch Panel Anti-Burglar Handsfree LED color Monitor w/ Video Recorder

Detail (gif)

The multimedia player function doorphone system,MP3 / WMA /DVD/digital photo frame all these files can be displayed through SDHC card on 8” monitor independently without PC.
Perpetual Calendar / LCD Clock / Thermometer all these information on monitor

Touch Panel Anti-Buglar Handsfree LED color Monitor w/ Video Recorder
Power In: DC15V
Audio: DC15V(from 368DB)
Consumption Current: Video-Stand-by 300 mA, Working 600mA
Anti-Burglar System: Stand-by 150mA, Working 300mA
Screen: Color- 8" LED Color LCD Panel (4:3)
Brightness: 250nix
(or cd/m2), new vivid saturation color
Resolution: 800 RGB(W) x 600(H) dot
Active Area: 162(W) x 121.5(H) mm
Color configuration: R. G. B. stripe
View Angle: Top: 50deg. Bottom: 65deg.
left / Right:
65deg
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, Double way transmitting wires
Anti-Burglar: double wire T-R, Double way transmitting wires
Installation way: Wall mounting type
Material: ABS
Dimensions: 212W/201H/40T mm
Weights: 1.0
kgs
Measurement: 0.18 cuft

Anti-Burglar Loops

Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.

Video Recorder (New Version)
Video recorded with a device that is compatible with MPEG-4.(Linux format)
Resolution : 640*480  30FPS per second
Memory Card: 4GB (SDHC Card) , the max. is up to 16GB
System: PAL or NTSC
Language: English

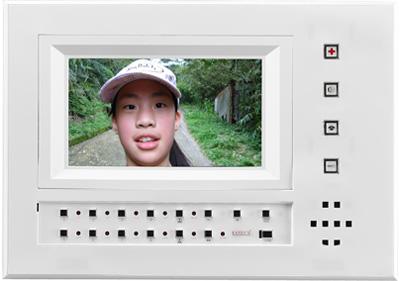

S368Mf 7” Anti-Burglar Handsfree Video Main Monitor


368Mb 3.5” Handsfree Video Monitor

7” Video Anti-Buglar Handsfree Monitor (Main Monitor)
Power In (Video): DC15V
Audio: DC15V(from 368DB)
Consumption Current: Video -- Stand-by 200 mA, Working 550mA
Anti-Burglar System: Stand-by 150mA, Working 300mA
Screen: Wide viewing angle, Color- 7" TFT LCD Panel
Resolution: 1440H X 234V dot

Active Area: 154.08(W)x86.58(H)(mm)
View Angle: Top: 30deg.; Bottom: 60deg.
left / Right: 60deg.

Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, dual way transmitting wires .
Anti-burglar: 2-wire T-R, dual way transmitting wires .
Installation way:
Wall mounting type
Material: ABS
Dimension: 220/320/40 mm
Packing: 0.6 cubic ft
Weight: 1.0 kg

need prebox
Prebox dimension: 220/310/50 mm

Anti-Burglar Loops
Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.



3.5” Video Handsfree Monitor
Power In (Video): DC15V
Audio: DC15V(from 368DB)
Consumption Current Video: Stand-by 1 mA, Working 350mA
Audio: Stand-by 50 mA, Working 200mA
Resolution: Color 480(H)x234(V)
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, dual way transmitting wires.
Installation way:
Wall mounting type
Material: ABS
Dimensions: (L)205mm/(W)130mm/(H)45mm
Weights: 1.3 kgs


S368Ma 4" Video Anti-Buglar Handset Monitor

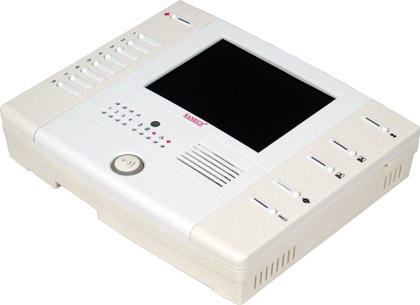

S368Mi 4" Video Anti-Buglar Handsfree Monitor(New Release)

Video Anti-Buglar Handset Monitor :
Power In: DC15V
Audio
:
DC15V(from 368DB)
Consumption Current: Video - Stand-by 1 mA, Working 550mA
Anti-Burglar System: Stand-by 150mA, Working 300mA
Resolution: color 960Hx234V dot
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, Double way transmitting wires
Anti-Burglar: double wire T-R, Double way transmitting wires
Installation way: Wall mounting type
Material: ABS
Dimensions: 215/220/60mm
Weights: 1.5kgs
Measurement: 0.3 cubic ft

Anti-Burglar Loops
Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.

Video Anti-Buglar Handsfree Monitor
Power In: DC15V
Audio
:
DC15V(from 368DB)
Consumption Current: Video-Stand-by 1 mA, Working 300mA
Anti-Burglar System: Stand-by 150mA, Working 300mA
Screen: Wide viewing angle, Color- 4" TFT LCD Panel
Back light: White LED

Resolution: color  960Hx234V dot
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, Double way transmitting wires
Anti-Burglar: double wire T-R, Double way transmitting wires
Installation way: Wall mounting type
Material: ABS
Dimensions: 140/170/35mm
Weights: 0.6kgs
Measurement: 0.2 cuft

Anti-Burglar Loops
Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.
368Mg  Anti-burglar Handsfree Audio only






Audio Anti-Buglar Handsfree
Power In: DC15V
Consumption Current:  Standby  50 mA, Working 200mA
Communicating Interface: single wire R-T, Double way transmitting wires:.
Installation way: Wall mounting type
Material: ABS
Dimensions: (L)210mm/(W)94mm/(H)40mm
Weights: 0.5. kgs
Measurement: 0.08”


Anti-Burglar Loops

Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.
368CC Control Center


5.6" Monitor for 368CC

1. Control 5 areas, 368CC not only control apartment situation but also control main entrance situation.
2. Built-in the input port of main entrance and connect to main entrance.
3. Built-in “door status” indicator & “system in use” indicator .
4. Built-in the 2 kinds of display screens - “8-bit” & “7-digit”. Upper LCD screen is receiver—To show the resident numbers of calling 368CC. Lower LCD screen is sender-- To show the Resident numbers were called by 368CC .
5. Built-in 15 memories of Resident number.
6. You can monitor any camera and open the door what camera you are monitoring.
7. Control the main entrance security. The visitor only can call 368CC when he(or she) would like to call any one of Residents from the camera of main entrance.
8. Built-in the ringing melody, the tenant can stop this ringing melody by oneself.

5.6” Monitor for  368CC
Power In: DC12V supply from 368CC
Installation way:
desk-top type
Material:
ABS
Dimensions:
160/180/38mm
Weights:
0.8kgs
Measurement: 0.3 cuft

368CB System Control Box


368VSB Video Signal Booster(New Release)

Power In : DC15V
Consumption Current: Stand-by 50mA, Working 300mA
Communicating Interface: RS485, dual-way transmitting wires
Installation way: Wall mounting type
Material: ABS
Dimensions: (L)107mm/(W)180mm/(H)48mm
Weights: 0.5 kg
Measurement: 0.03 cuft

Power In: DC15V
Consumption Current: Stand-by Audio-450mA Video-50mA, Working Audio-650mA Video-50mA
Communicating Interface: single way R-T, dual-way transmitting wires
Output to 8 monitors
Installation way: Wall mounting type
Material: ABS
Dimensions: (L)107mm/(W)160mm/(H)48mm
Weights: 0.5 kg
Measurement: 0.03'

PH-P9 Power Supply for Monitor


PH-P7a Switching Power Supply for Monitor

PH-P7 Switching Power Supply

Power Source: AC 85-264V  47- 63 HZ
Working temperature -20 ~ +60

Output:
15V, 0 ~ 5.0 A
DC output adjustment 15 ~ 16.5V

Dimensions: 170x97x40 mm
Net Weight: 0.6kg
Separated connectors AC / DC
When output LED indicator off: Fuse open

Working Voltage : AC 90-245V  50-60HZ
Consumption Current:
Stand-by  0.1A, Working 0.3A(AC)
Output: DC 15V / 1.5A(Max.)
Material: ABS
Dimensions: 105x55x36 mm
Net Weight: 115 mgs
Dual Purpose fixed way: European type of Din Rail or Wall mounting type
Separated connectors AC / DC
When output LED indicator off: Fuse open
No need to dismantle from cover, you can change fuse easily
It's a convenient size (115 mg / 105x55x36 mm)
European design: Din Rail Type

PH-P6 The power supply






Working Voltage:  AC 90-120V /220V
Consumption Current: Stand-by  0.1A, Working 0.5A
Output Voltage: Blue DC16.5V     Black  DC12V
Output Current: DC 12V   350mA Max.   DC16.5V  2A Max. Total 2.5A Max
Dual Purpose fixed way: European type of Din Rail or Wall mounting type
Material: ABS
Dimension: 160X120X80mm
Packing: 0.08 cubic ft
Weight: 2 kg
European design: Din Rail Type



368CC



855C5+855K2
