KANRICH 168 Video Doorphone Systwm

Digital Video Doorphone System

Security Alarm Digital Video Doorphone


	Thank you very much for your patronage. This is an intelligent system; analog system and digital system are available. The max. capacity up to 90 cameras --- 4,000 apartments can be run in the same system. In the meanwhile, this system can be extended to security video and intercom 3 in 1 system. Some design space is kept for applying to modern various designs in the future. The stable system offers residents a safe living environment. Wiring Specifications : Main wire : 7(signal cable AWG20) + 1(video cable 75-5<5C2V> RG59 or RG11) Branch wire : 9(signal cable AWG22) + 1(video cable 75-5<5C2V> RG59 or RG11)
Functions : Main wire : 7 + 1(7 signal + 1 video cable), RS485 digital transmission, format framework, easy installation & construction. Max. capacity : one control console can control 5 areas , each area can control 800 apartments , total 4,000 apartments and each area can connect 90 cameras. Control public main entrance, multi- public main entrances are available. The range of apartment number is from 1 digit to 8 digits, 1---99,999,999 is available . Setting apartment number or changing apartment code in DB directly. To increase door bell with CCD or without CCD in system, not only with the function of door bell but entrance guard function. 4 different ringing tones means calling source : <1> Camera calls Monitor <2> Control Console calls Monitor <3> Door bell calls Monitor <4> Monitor calls Control Console.

168C7 (Colour or B/W CCD)--New Release			168C8 (Colour or B/W CCD) +Inductive Reader
	Power In: DC15~18V by Adaptor Resolution: Colour- 480 TV line B/W- 500 TV Line Lens: Auto CCD: 1/3" Colour or B/W CCD F1.8/3.0mm,Full angle 92 Degree Min. illumination: Colour-0.1 Lux , B/W-0.1Lux (w/ 12pcs Infrared IR) Dimensions: W/prebox : 325x120x80mm (w/flush mounting prebox) W/O prebox : 325x120x60mm Packing:0.13 cubic ft Weight: 1.5 kg Need Prebox Stainless + Back light Keypad			New release Power In: DC15~18V by Adaptor Resolution: Colour- 480 TV line , B/W- 500 TV Line Lens: Auto CCD: 1/3" Colour or B/W CCD F1.8/3.0mm,Full angle 92 Degree Min. illumination: Colour-0.1 Lux , B/W-0.1Lux (w/ 12pcs Infrared IR) Dimensions: 300x200x75mm Packing:0.25 cubic ft Weight: 2.9 kgs Need Prebox with Inductive Card Reader Editing by remote control system Memorize 5,000 pcs Inductive Cards (EM Card) Could be used by 0.18/0.76cm EM Card Stainless + Back light Keypad
168C1 B/W or Color			168K Keypad
	Resolution: B/W-500 TV line Color-480 TV line Power In: DC15V Residents available: 10~18 units Lens: auto CCD: 1/3" CCD F1.8, Full 92 degrees Min. illumination: 0.1 lux with 12 pcs LED Dimension: W/prebox : 325x120x80mm (w/flush mounting prebox) ,325x120x85mm (w/surface mounting prebox) W/O prebox : 325x120x60mm Weight: 1.5 kg			Power In: Supply from 168C1 Residents available: 10~20 units Dimension: W/prebox : 325x120x80mm (w/flush mounting prebox) ,325x120x85mm (w/surface mounting prebox) W/O prebox:325x120x60mm Weight: 1.0 kg

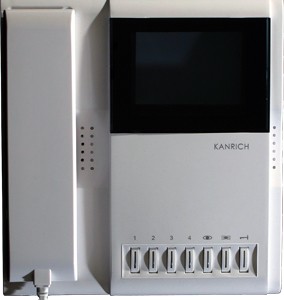

168M4 Handset			168Ma-DC in or AC in
Power In: DC15V Call: Telephone tone Consumption: 200 mA Wire: Analog n+7+1 Dimension: 200X100X45 mm			Power In: DC15V or AC90~250V Screen: Colour- 3.5" Colour TFT LCD [B/W- 4" Flat type CRT] Call: Ding_Dong tone Consumption: standby-200 mA working-600mA Wire: Analog n+7+1 Dimension: 210X225X55 mm

168C2 : Digital Camera			168C3 : Door Bell
	Open door with security code The apartment code can be set 1 digit,2 digits,........to 8 digits. Power Source : DC 15V 2 systems : color and black-white Resolution : B/W 420 TV line Color 420 TV line CCD : 1/3"CCD, F1.8, Full 92 degrees Consumption : DC15V-500mA Dimension : W/prebox : 325x120x80mm (w/flush mounting prebox) ; 325x120x85mm (w/surface mounting prebox) W/O prebox : 325x120x60mm Weight : 1.5 kgs			with CCD or without CCD Power Source : DC 15V Consumption : DC15V-300mA Dimension : 100x200x55mm Power Source : DC 15V

S168M			S168M3
Power In: DC15V Screen: Color- 3.5" Color TFT LCD [B/W- 4" Flat type CRT] Resolution: Color-105,196 pixels/ 442H X 238V [B/W-500 TV lines] Calling tone: Telephone sound Consumption: standby 200mA. operating 600mA. With security 1000mA wire: 7-wire + 2 power wires + 1 video cable + 2 Security wires The message LED flash the call is from the 168CC Dimension: 210x225x55 mm Packing: 0.3 cubic ft Weight: 1.5 kg			Power In: DC15V Calling tone: Telephone sound Consumption: standby 200mA. operating 300mA. With security 700mA wire: 7-wire + 2 power wires + 2 Security wires The message LED flash the call is from the 168CC Dimension: 100/200/45 mm Packing: 0.1 cubic ft Weight: 0.5 kg
Alarm burglar functions : Supervised Zones: 2 24hrs zones for gas, fire detector and panic, 2 zones for anti-burglar zones in system Bell: To start or stop as your choice when open the door Password: press 4 digits for the password. And you can change the Password anytime Output: By RS485 to Kanrich own system Arm/ dis-arm anti-burglar zones: Delay or immediately by Remote control / keypad password / all kinds of card readers Delay arm/dis-arm time: It can be set the delay time of arm/dis-arm , the setting time is 40 sec. And before 15/10/5 sec. of reach the dis-arm time, internal sounder will sound for reminding entry delay Optional Items: Extra Siren, extra Battery, AC/DC12V Adaptor, PIR and Magnetic Switch Accessory: Remote Control 2 pcs for Arm/dis-arm, Panic and Soundless Panic functions (3 kinds of functions)			Alarm burglar function : Supervised Zones: 3 24hrs zones for gas, fire detect and panic, 2 zones for anti-burglar zones in system Bell: To start or stop as your choice when open the door Password: press 4 digits for the password. And you can change the Password anytime Output: By RS485 to Kanrich own system Arm / dis-arm anti-burglar zones: Delay or immediately / keypad password / all kinds of card readers Delay arm/dis-arm time: It can be set the delay time of arm/dis-arm , the setting time is 40 sec. And before 15/10/5 sec. of reach the dis-arm time, internal sounder will sound for reminding entry delay Optional Items: Extra Siren, extra Battery, AC/DC12V Adaptor, PIR and Magnetic Switch
168CB : Control Box			168DB : Distributor Box
	Power Source : DC 15V Every CB with one ID Every CB can connect 2 Cameras many kinds of connecting ways Consumption : DC15V-200mA Dimension : 107Wx156Lx50Hmm			Power Source : DC 15V Every DB can connect 8 apartments , all 8 apartment codes save in DB An intelligent saving apartment code Consumption : DC15V-300mA Dimension : 107Wx156Lx50Hmm

PH-P6 : Power Supply for Monitor			PH-P7 : Switching Power Supply for Monitor
Power Source : AC230/220/120/110V Output: DC16.5V/2.5A Dimension: 160x120x80mm			。Power Source: AC100-240V 47-63HZ 。Output: DC 15V/ 1.0A 。Dimensions: 105X55X36 mm 。Net Weight: 115 gs 。Dual Purpose fixed way: European type of Din Rail or hangings type 。Separated connectors AC / DC 。When output LED indicator off: Fuse open 。No need to dismantle from cover, you can change fuse easily 。It's a convenient size (115 g / 105x55x36 mm)

VB4 : Video Booster			S600DB Distributor Box with Security Software
Power Source : DC 15V Video in : one port Video Out : 4 ports Consumption : DC15V-200mA Dimension : 80x55x55mm			For win98 / Win 2000 system Control center can control every apartment Security situation Consumption : DC15V-200mA Dimension : 107Wx156Lx50Hmm

168CC : Control Console			485 / 232 Convertor
Power Source : DC 15V Adaptor Decode : Any apartment code can be decoded Capacity : 4,000 apartments Consumption : DC15V-500mA Dimension : 305x210x60mm			Power: DC15V/ 200mA Input: From 168CB (485) Output: To RS232 socket Win98 or Win2000 system Dimension: 100X65X45 mm
